| Quantity: | |
|---|---|
| Product Name: | Shell Tube Heat Exchanger | Tube Material: | Stainless Steel 304 , 316l |
|---|---|---|---|
| Shell Material: | PP, SS304, SS316 | Water Side: | Groud Water, Fresh Water, Drink Water ... |
| Capacity: | 23.2KW | Water Flow: | 4m3/h |

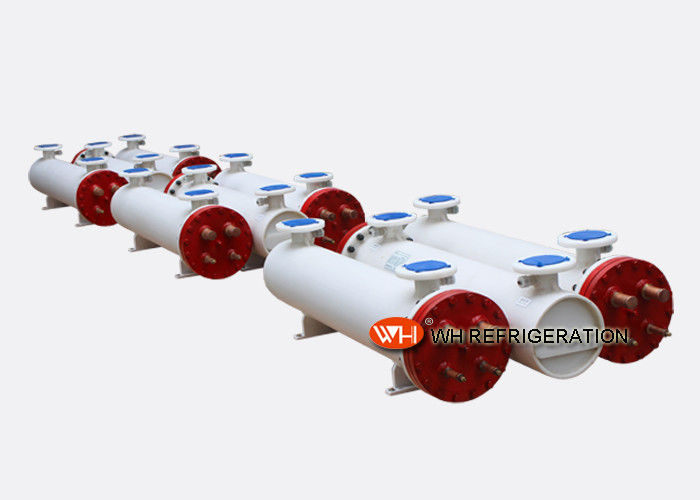

Simple Structure U Tube Shell And Tube Heat Exchanger / Stainless Steel Heat Exchanger
U-tube heat exchanger, a kind of shell-and-tube heat exchanger is a petrochemical equipment. U-tube heat exchanger consists of the tube box, shell, tube bundles and other main components.
Catalogue:
1.0 Refrigeration Ton = 3.5KW
| Model | Type | Cooling Capacity | Water Flow | Dimension(MM) | |||||||
| KW | M3/H | A | B | C | D | E | F | G | H | ||
| WHB-5.0DKG | Single Circuit | 11.6 | 2.0 | 660 | 170 | 90 | 500 | 130 | 400 | 60 | 200 |
| WHB-8.0DKG | 18.6 | 3.2 | 950 | 170 | 90 | 790 | 190 | 600 | 60 | 200 | |
| WHB-10DKG | 23.2 | 4.0 | 1180 | 170 | 90 | 1020 | 350 | 600 | 60 | 200 | |
| WHB-12DKG | 27.9 | 4.8 | 900 | 200 | 90 | 740 | 160 | 600 | 60 | 200 | |
| WHB-15DKG | 35.0 | 6.0 | 1110 | 200 | 100 | 940 | 150 | 800 | 60 | 200 | |
| WHB-20DKG | 46.5 | 8.0 | 1420 | 200 | 100 | 1250 | 370 | 800 | 60 | 200 | |
| WHB-40DKG | 93.0 | 16.0 | 1720 | 250 | 110 | 1540 | 300 | 1200 | 60 | 260 | |
| WHB-50DKG | 116.3 | 20.0 | 2120 | 250 | 110 | 1940 | 500 | 1200 | 60 | 260 | |
| WHB-80DKG | 186.0 | 32.0 | 2100 | 315 | 120 | 1910 | 350 | 1500 | 60 | 300 | |
| WHB-120DKG | 279.1 | 48.0 | 2670 | 315 | 130 | 2460 | 600 | 1800 | 60 | 300 | |
| WHB-180DKG | 418.7 | 72.0 | 2520 | 400 | 150 | 2280 | 600 | 1600 | 60 | 400 | |
| WHB-220DKG | 511.7 | 88.0 | 3040 | 400 | 150 | 2800 | 650 | 2000 | 60 | 400 | |
| WHB-5*2EKG | Double Circuits | 23.2 | 4.0 | 1180 | 170 | 90 | 1020 | 350 | 600 | 60 | 200 |
| WHB-8*2EKG | 37.2 | 6.5 | 1180 | 200 | 100 | 1010 | 200 | 800 | 60 | 200 | |
| WHB-10*2EKG | 46.5 | 8.0 | 14200 | 200 | 100 | 1250 | 370 | 800 | 60 | 200 | |
| WHB-12*2EKG | 56.0 | 9.6 | 1460 | 225 | 100 | 1290 | 250 | 1000 | 60 | 200 | |
| WHB-15*2EKG | 70.0 | 12.0 | 1360 | 250 | 100 | 1190 | 200 | 1000 | 60 | 260 | |
| WHB-30*2EKG | 140.0 | 24.0 | 2030 | 280 | 110 | 1850 | 500 | 1200 | 60 | 260 | |
| WHB-35*2EKG | 163.0 | 28.0 | 2340 | 280 | 120 | 2150 | 500 | 1500 | 60 | 260 | |
| WHB-5*3SKG | Triple Circuits | 35.0 | 6.0 | 965 | 225 | 100 | 810 | 200 | 600 | 60 | 200 |
| WHB-8*3SKG | 55.8 | 9.6 | 1460 | 225 | 100 | 1300 | 400 | 800 | 60 | 200 | |
| WHB-10*3SKG | 69.7 | 12.0 | 1390 | 250 | 100 | 1220 | 200 | 1000 | 60 | 260 | |
| WHB-12*3SKG | 83.7 | 14.4 | 1650 | 250 | 110 | 1480 | 420 | 1000 | 60 | 260 | |
| WHB-20*3SKG | 139.5 | 24.0 | 2100 | 280 | 110 | 1920 | 550 | 1200 | 60 | 260 | |
| WHB-25*3SKG | 174.3 | 30.0 | 2050 | 315 | 120 | 1850 | 350 | 1500 | 60 | 300 | |
| WHB-30*3SKG | 209.3 | 36.0 | 2430 | 315 | 120 | 2230 | 550 | 1600 | 60 | 300 | |
| Design Working Condition: Chilled water in TEMP.(Ti=12℃), water out TEMP.(Tu=7℃), evaporation TEMP.(To=2℃) | |||||||||||
Features of U-tube heat exchanger
1)Simple structure, easy manufacturing
2)Large processing quantity (1-2,000m³/h)
3)Stable and reliable operating state
Strong adaptability (applicable to almost all industries)
4)Adaptability to high temperature and pressure (≤800°C; ≤6.0Mpa)
Features of U-tube heat exchanger
Well suited for serve performance requirements with maximum thermal expansion capability
Each tube can expand and contract independently
Advantages
1. U-tube design allows for differential thermal expansion between the shell and the tube bundle as well as for individual tubes
2. Less costly can floating head or packed floating head designs
3. Capable of withstanding thermal shock applications
4. Bundle can be removed from one end for cleaning or replacement
5. Shell circuit can be inspected and steam or mechanically cleaned
Shell and tube heat exchanger Applications and uses
1.Cooling of hydraulic fluid and oil in engines, transmissions and hydraulic power packs.
2.Heating other mediums, such as water, beverage, orange juice and other steam.
3.They are extensively applied in chemical industrial, petroleum and energy source and etc.
