|Application:||Refrigeration Parts||Product Name:||Spiral Tube Heat Exchanger Coil Water Cooling Coil|
|Max Pressure:||4.0Mpa||Tube Size:||Adjustable|

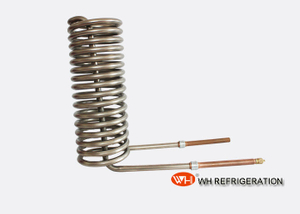

Spiral Coil Heat Exchanger Evaporator Heating Coil For sea water
Work Condition :
1 ) Refrigerant side(In the tube) : R22,R134a,R407c,R410a etc.
2 ) Water side (in your tank) : Nature water,drink water,seawater etc .
Heat transfer Tube : 316L / SUS304 / Copper / Titanium
1 ) The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.
2 ) To guarantee constant inprovement of technology , the parameters shall be changed without further notice.
|Model||Heat capacity||Diameter||Quantity||Freon inlet/outlet||External Dimensions|
1 ) Usually used for heating and cooling.
2 ) Pure titanium tube has super strong corrosion proof ability and high intensity.
3 ) The seamless titanium tube was tested by 2.0MPa pressure to make sure the tube is strong and not leakage .
4 ) It has the character of strong corrosion resistance ,good heat resistance , high conductivity, non-toxic,no-scale ,no-blocking , no contamination of medium,and not easy to formed oxides on the surface.
factory coil evaporator heating coil sizing stainless steel coil are widely used for mariculture ,seawater heat transfer,saline heat transfer, chemical industry,food Industry,Metallurgy,refrigeration,light industry,plating industry,aluminum oxidation tank,salt manufacturing ,paper making,ultrasonic,electrommunication and central heating etc.
1/2" x 50' Stainless Steel Immersion Wort Chiller
Thin wall stainless provides a more efficient heat transfer over standard stainless steel tubing
The coils can be elevated to increase the efficiency of the cooling process
This immersion chiller is designed for 5 gallon batches and will cool your wort in minutes!
Stainless Steel is not as thermally conductive as Copper, meaning the same chiller in stainless vrs copper will take about 10% longer to cool your wort. The main advantage of stainless over copper is that stainless won't tarnish between uses. The price of stainless is also less than copper making this a very affordable chiller that will last a lifetime.
Note: The inner bend on the coils have small indentations that are a natural result of the winding process used during manufacturing. By enlarging the photos you can view. As a bonus these actually help turbulate the cooling water to eliminate laminar flow.
When using an Immersion Wort Chiller there's no unnecessary transferring to different containers, and there's no need to dilute the wort with cold water. Just drop the immersion chiller in to the brew pot. The preferred method of sanitation is to make sure it is clean to the eye and submerge the coil portion of the chiller in to the wort during the last 15 minutes of the boil, this will kill any wild yeasts or unsanitary pests that might be introduced. Once the brew pot is taken off the boil, you can begin cooling immediately by hooking up the line and turning on the water.
50' Stainless tubing (1524mm)
10" diameter (260mm)
24" to the bend to go over the lip of the kettle. (610mm)
Our organisation is contributing huge patrons from the markets of China and other abroad countries such as Singapore, Middle-East, Africa, Malaysia, Europe, Denmark, America, Australia, UK, etc. Apart from these countries, we are also looking forward to entertain our more clients, by offering them our reliable products.
1 . Your inquiry will be replied in 12 hours.
2 . Professional heat exchanger engineer service for your questions about heat transfer equipement.
3 . Protect your sales area, ideas of design and all your private information.
4 . Experienced R&D, make the products according your requests .
5 .1 2 Months warranty.
Shipping & Packing :
1 . Shipping by sea or air is flexible.
2 . Special discount is available if substantial order is placed.
3 . T/T, L/C, and Western Union is available .
Q1 . Are you factory?
A . Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China
Q2 . May i get your product catalogue?
A . Sure, you are welcome to download the latest catalogue at our web www.169call.com/en,E-book , or contact us directly.
Q3 . Are there any discount for the heat exchangers?
A . Yes. Bigger quantity will enjoy lower discount!
Q4 . What is the MOQ?
A . We accept loose quantity order,mixed order,any trial orders.
Q5 . What information needed if I want a quotation?
A . Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
Q6 . Can we visit your company/factory before place the order?
A . Sure.Welcome anytime.
