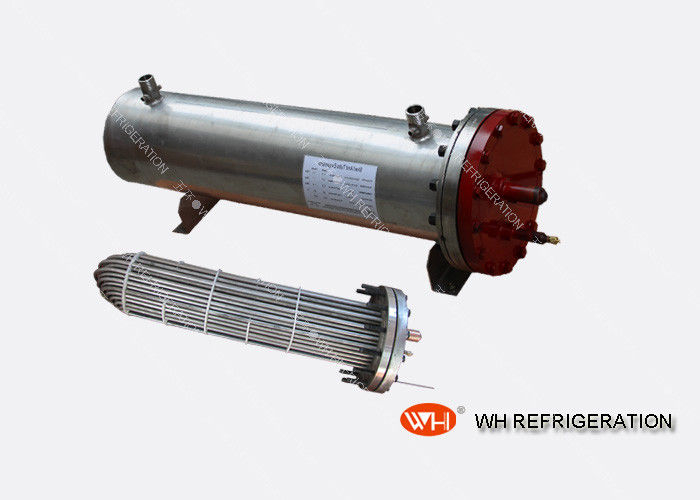

Stainless Steel Shell And Tube Heat Exchanger U Tube Inner Structure , Double Circuit

Quantity:
  • Zhejiang, China
  • 1PC
Product Name: Shell And Tube Heat Exchanger Capacity: 27.9kw
Structure: Tube Heat Exchanger Outer Shell: Stainless Steel
Is-customized: Yes Weight: 55KG



Made in China Shell And Tube Heat Exchanger U Tube Inner Structure









Features:



1. Stainless steel outer shell, dry evaporator, U-type design

2. Double circuit

3.Detachable tube plate connection

4. High quality and heat transfer stainless steel seamless tube

5. Patented spiral baffles

6. External thread or flange outlet provided



Stainless Steel Shell And Tube Heat Exchanger U Tube Inner Structure , Double Circuit

Product Information:





The tube core and shell of this type heat exchanger are made of good-quality 304 stainless steel.

Advantages: uneasy to rust, wide temperature range, non-toxic and no pollution, widely used in industrial chillers, printing chillers and other refrigeration equipment and especially used in pure and clean water, such as wine cooling in the field of food, medical dialysis and other areas.



Wenzhou Wuhuan Refrigeration Accessories Factory is a professional company specializing in development, production and trade of refrigeration euipment and relevant accessories. We are located in Ouhai economic-technical development zone of Wenzhou, Zhejiang, with convenient transportation access. Our main products include shell and tube eveporator, pure titanium eveporator, stainless steel eveporator, corrosion resistant evaporator and more.



Stainless Steel Shell And Tube Heat Exchanger U Tube Inner Structure , Double Circuit







Application:

  • Efficient Marine Heat Exchanger/china Turbine Oil Cooler Supplier is widely used for freezing industries,such as plating ,oxidation ,chemical industry,metallurgy,light industry,shipbuilding,heating, pharmaceutical,foodstuff etc, also for leather chiller, injection molding machine chiller, print chiller,PV shoe machine chiller and so on.



Technical Parameters:

1.0 Refrigeration Ton = 3.5KW



Stainless Steel Shell And Tube Heat Exchanger U Tube Inner Structure , Double Circuit



Model

Type

Cooling Capacity

Water Flow

Dimension(MM)

KW

M3/H

A

B

C

D

E

F

G

H

WHFF-5.0DKG

Single Circuit


11.6

2.0

620

159

80

480

100

400

60

140

WHFF-8.0DKG

18.6

3.2

930

159

80

790

160

600

60

140

WHFF-10DKG

23.2

4.0

1140

159

80

1000

320

600

60

140

WHFF-12DKG

27.9

4.8

750

219

80

610

180

400

60

140

WHFF-15DKG

35.0

6.0

900

219

80

760

150

600

60

180

WHFF-20DKG

46.5

8.0

1160

219

80

1020

200

800

60

180

WHFF-25DKG

58.1

10

1430

219

80

1290

250

1000

60

180

WHFF-30DKG

69.7

12

1670

219

80

1530

380

1000

60

180

WHFF-40DKG

93.0

16

1520

254

90

1360

160

1200

60

240

WHFF-50DKG

116.3

20

1860

254

90

1700

400

1200

60

240

WHFF- 60DKG

139.5

24

2000

273

110

1820

450

1200

60

240

WHFF-70DKG

162.8

28

2310

273

120

2130

500

1200

60

240

WHFF-80DKG

186.0

32

2000

306

120

1810

260

1500

60

300

WHFF-90DKG

209.3

36

2220

306

120

2030

400

1500

60

300

WHFF-100DKG

232.6

40

2450

306

120

2260

600

1500

60

300


Refrigerant R22 To=2℃ Tk=7℃ Ti=12℃ Tu=7℃  Q rated cooling capacity(KW)  W Chilled water flow(m3/h)








Company  Profile:



  • Wuhuan Refrigeration is a manufacture integrated trading company which specializes in cooling plant, accessories development and production. Our company is located in Economic and Technological Development Zone of Ouhai District in Wenzhou City , Zhejiang Province, which has a good traffic. Now, there are many advanced sets of manufacturing equipment including NC machining, 600 type high precision lathe, high frequency welding, microcomputer electric tube expanding machine, microcomputer automatic pipe bending machine, gold thyratron argon welding machine control and more. Our company mainly produced shell and tube evaporators, pure titanium evaporators (titanium gun and titanium barrel), stainless steel evaporators, corrosion-resistant evaporators, titanium tube heat exchanger, profiled titanium pipe and other refrigeration accessories products. These products are widely used in electroplating cold water machine, laser cooling-water chiller, seafood machine, heat pump unit, ice machine, marine air conditioning for cooling and heating in certain fields of special industries.
