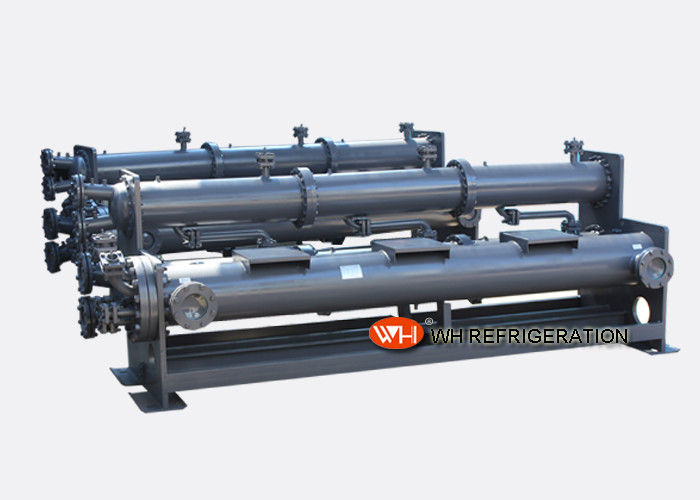

Dry Shell And Tube Heat Exchanger for Water Cooled Screw Water Chiller

Quantity:
  • China
  • WH
  • CE
  • WHT-GU
  • 1 pc
  • Negotiation
  • Wooden case
  • 8 working days
  • L/C, T/T, Western Union
  • 100/pcs per month
Product Name: Dry Shell And Tube Heat Exchanger Tube Material: Copper Tube / Al-brass / Cupro-nickel
Shell Material: Carbon Steel / Stainless Steel / PP Feature: Higher Heat Exchanging Efficiency
Capacity: 11KW~900KW Specific Use: For Water Cooled Screw Water Chiller
Type: Single / Double / Triple Circuits Is-customized: Yes

Dry Shell And Tube Heat Exchanger for Water Cooled Screw Water Chiller



Describe:



  • Model: WHT-GU
  • Cooling Capacity: 15kw~900kw
  • Materials: Carbon Steel Shell + Copper Tube
  • Special Use: Cooling, Evaporator



Work Condition:



Evaporator Shell Side Tube Side
Design Pressure(Mpa) 0.8 1.4
Max. Pressure(Mpa) 0.8 1.4
Test Pressure(Mpa) 1.0 1.61
Design TEMP. (℃) 38 38
Medium Water R22 / R404A



Application:



  • Shell and tube evaporator is widely used for freezing industries,such as plating ,oxidation ,chemical industry,metallurgy,light industry,shipbuilding,heating, pharmaceutical,foodstuff etc, also for leather chiller, injection molding machine chiller, print chiller,PV shoe machine chiller and so on.



Catalogue:

1.0HP=2.3KW

1.0 Refrigeration Ton = 3.5KW



Model Capacity Water Flow Dimension(MM)
HP M3/H A B C D E F G H L L1 T1 T2
WHT-GU15 5.0 2.6 660 460 140 168 150 400 60 290 200 150 30 30
WHT-GU23 8.0 4.0 935 740 140 168 180 600 60 290 200 150 35 35
WHT-GU28 10.0 4.8 1060 850 140 168 280 600 60 290 200 150 35 35
WHT-2GU28 5+5 4.8 1060 850 140 168 280 600 60 290 200 150 35 35
WHT-2GU35 6+6 6.0 1300 1080 145 168 300 800 60 290 200 150 35 35
WHT-2GU45 8+8 7.7 1145 930 145 195 300 800 60 315 200 150 40 40
WHT-3GU66 8+8+8 11.5 1660 1440 155 195 400 1000 80 345 200 150 40 65
WHT-3GU75 9+9+9 13.0 1840 1620 155 195 400 1200 80 345 200 150 40 65
WHT-3GU88 10+10+10 15.2 1670 1420 160 219 300 1200 80 369 250 200 40 65

Dry Shell And Tube Heat Exchanger for Water Cooled Screw Water Chiller

Notice:



  • The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.
  • To guarantee constant inprovement of technology , the parameters shall be changed without further notice.


Packaging & Delivery :


  • Prompt deliver at the very day.
  • Sophisticated and professional logistic agent.
  • Well-trained and disciplined packing team.
  • Packing pictures and tacking code are provided when goods ready.
  • After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


Competitive Advantages:


  • We offer high quality products at competitive price in quick delivery.
  • 100% custom pass guaranteed.
  • Good after-sale service.
  • Flexible and Untraceable payment terms.
  • Our organisation is contributing huge patrons from the markets of China and other abroad countries such as Singapore, Middle-East, Africa, Malaysia, Europe, Denmark, America, Australia, UK, etc. Apart from these countries, we are also looking forward to entertain our more clients, by offering them our reliable products.


RAQ:


  • Are you manufacturer ?
  • Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.



  • What is MOQ ?
  • We accept loose quantity order,mixed order,any trial orders.



  • What information needed if I want a quotation?
  • Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size. More details please contact us at wh@169call.com



  • What is your production time ?
  • It's 10 working days for standard model.
