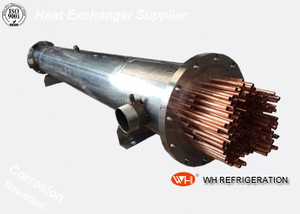

China Top Quality Shell In Tube Condenser 9kw ~ 180kw Water Chiller Unit Air To Water Heat Exchanger Calculations
- China Top Quality Shell In Tube Condenser 9kw ~ 180kw Water Chiller Unit Air To Water Heat Exchanger Calculations is widely used for freezing industries,such as plating ,oxidation ,chemical industry,metallurgy,light industry,shipbuilding,heating, pharmaceutical,foodstuff etc, also for leather chiller, injection molding machine chiller, print chiller,PV shoe machine chiller and so on.
- The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.
- To guarantee constant inprovement of technology , the parameters shall be changed without further notice.
1.0 Refrigeration Ton = 3.5KW
- Marine heat exchanger usually used for cooling / heating.
- Pure titanium tube has super strong corrosion proof ability and high intensity.
- The shell was tested by 0.6Mpa water pressure to make sure the water system not leakage.
|Model ||Type ||Cooling Capacity ||Water Flow ||Dimension(MM) |
|KW ||M3/H ||A ||B ||C ||D ||E ||F ||G ||H |
|WHC-5.0DKG ||Single Circuit ||11.6 ||2.0 ||660 ||200 ||90 ||510 ||150 ||340 ||60 ||200 |
|WHC-8.0DKG ||18.6 ||3.2 ||820 ||200 ||90 ||660 ||150 ||500 ||60 ||200 |
|WHC-10DKG ||23.2 ||4.0 ||1050 ||200 ||90 ||900 ||300 ||600 ||60 ||200 |
|WHC-5*2EKG ||Double Circuits ||23.2 ||4.0 ||1050 ||200 ||90 ||900 ||300 ||600 ||60 ||200 |
|WHC-8*2EKG ||37.2 ||6.4 ||1500 ||200 ||100 ||1350 ||450 ||800 ||60 ||200 |
|WHC-10*2EKG ||46.5 ||8.0 ||1500 ||225 ||100 ||1350 ||450 ||800 ||60 ||200 |
|WHC-12*2EKG ||55.8 ||9.6 ||1350 ||250 ||100 ||1200 ||350 ||800 ||60 ||260 |
|Design Working Condition: |
Chilled water in TEMP.(Ti=12℃), water out TEMP.(Tu=7℃), evaporation TEMP.(To=2℃)
- We offer high quality products at competitive price in quick delivery.
- 100% custom pass guaranteed.
- Good after-sale service.
- Flexible and Untraceable payment terms.
- Our organisation is contributing huge patrons from the markets of China and other abroad countries such as Singapore, Middle-East, Africa, Malaysia, Europe, Denmark, America, Australia, UK, etc. Apart from these countries, we are also looking forward to entertain our more clients, by offering them our reliable products.
Packaging & Delivery :
- Prompt deliver at the very day.
- Sophisticated and professional logistic agent.
- Well-trained and disciplined packing team.
- Packing pictures and tacking code are provided when goods ready.
- After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
