| Quantity: | |
|---|---|

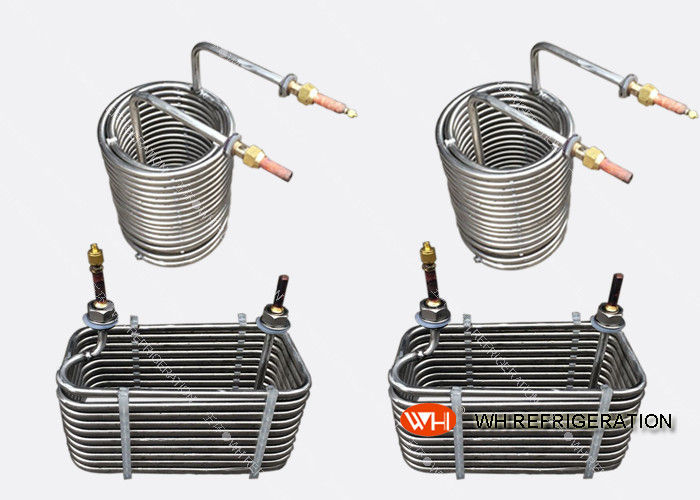

| Product Name: | Titanium Coil Heat Exchanger | Materials: | Titanium |
|---|---|---|---|
| Connector: | Flare Nuts | Refrigerant: | R22, R134A, R407C |
| Tube Size: | 9.52 , 12.7 , 19 , 25 Mm | Feature: | Corrosion Resistant |
| Water Side | Refrigerant Side | |
| Rated pressure | 4.0Mpa | 4.0Mpa |
| Normal working pressure | 2.0Mpa | 3.0Mpa |
| Working temp. | -50-150℃ | -50-150℃ |
| Media | Tap water,sea water,beverage,different corrosive solutions | R22,R407C,R410A,R134A,R404A,R417A etc |
Specific industries used:
Heating
Refrigeration and Air-conditioning
Heat Pump
Mechanical Engineering
Feature:
1.Constructed of high quality corrosion resistant stainless steel
2.Rolled formed to shape and then precision welded
3.Specially designed built in flow restrictor to assure maximum heat exchange
4.Designed to minimize pressure loss in the heating system
5.Loak tested to assure that are totally functionable
| Model | Heat capacity | Diameter | Quantity | Freon inlet/outlet | External Dimensions | |||
| kw | d | e | a2 | a1 | A | B | C | |
| WHC-1.0DG | 2 | ∅19.05 | 6.5 | ∅12.7 | ∅12.7 | 375 | 165 | ∅150mm |
| ∅16.0 | ∅12.7 | ∅12.7 | 375 | 165 | ∅150mm | |||
| WHC-1.5DG | 3 | ∅19.05 | 8.5 | ∅12.7 | ∅12.7 | 375 | 240 | ∅150mm |
| ∅16.0 | ∅12.7 | ∅12.7 | 375 | 240 | ∅150mm | |||
| WHC-2.0DG | 4 | ∅19.05 | 10.5 | ∅12.7 | ∅12.7 | 375 | 305 | ∅150mm |
| ∅16.0 | ∅12.7 | ∅12.7 | 375 | 305 | ∅150mm | |||
| WHC-3.0DG | 6 | ∅19.05 | 13.5 | ∅12.7 | ∅19.05 | 375 | 475 | ∅150mm |
| ∅16.0 | ∅12.7 | ∅16.0 | 375 | 475 | ∅150mm | |||
| WHC-5.0DG | 10 | ∅19.05 | 18.5 | ∅12.7 | ∅19.05 | 375 | 645 | ∅150mm |
| ∅16.0 | ∅12.7 | ∅16.0 | 375 | 645 | ∅150mm | |||
