| Quantity: | |
|---|---|

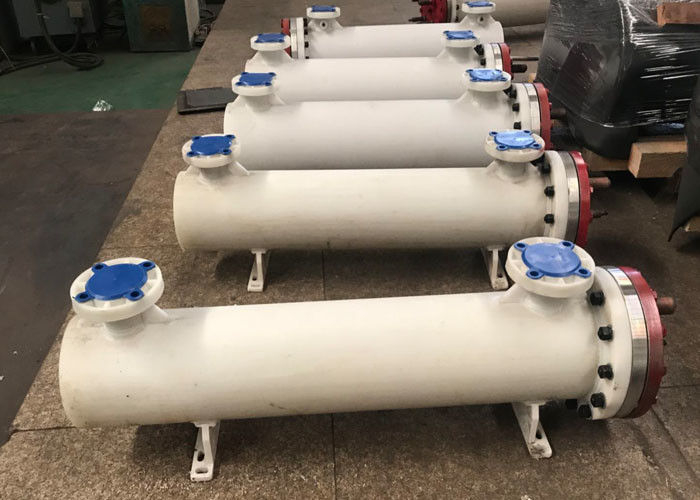

| Product Name: | Dry Shell And Tube Heat Exchanger | Structure: | Tube Heat Exchanger |
|---|---|---|---|
| Outer Shell: | PP Plastic | Weight: | 5-500KG |
| Warranty: | 12 Months | Is-customized: | Yes |
The cold water flows in the tube and the refrigerant evaporates in the shell. It's one of the main styles of refrigerating unit that cool the secondary refrigerant. It commonly adopt horizontal type, which has the characteristic of effective heat transfer, compact structure, small occupied area and easy installation etc.
Features :
1) simple structure , convenient cleaning
2) high heat transferring efficiency .
3) strong adaptability
Typical applications
1. Process liquid or gas cooling
2. Process or refrigerant vapor or steam condensing
3. Process liquid, steam or refrigerant evaporation
4. Process heat removal and preheating of feed water
5. Thermal energy conservation efforts, heat recovery
6. Compressor, turbine and engine cooling, oil and jacket water
7. Hydraulic and lube oil cooling
Advantages
1.Less expensive as compared to other type coolers.
2.Can be used in systems with a wide range operating temperatures and pressures.
3.Pressure drop across a shell and tube heat exchangers is less.
4.Tube leaks are easily located and plugged since pressure test is comparatively easy.
5.Tubular coolers in refrigeration system can act as receiver also.
6.Using sacrificial anodes protects the whole cooling system against corrosion.
7.Extended heat transfer surfaces (fins) can be used to enhance heat transfer.
8.Cleaning and repair are relatively straightforward, because the equipment can be dismantled for this purpose
9.The heat exchanger has two type including horizontal and vertical styles, so it can be installed in different locations conveniently.
Tube Material: Copper, aluminum brass tube, CuNi.
Tube Sheet Material: Stainless steel
Material: Carbon steel , stainless steel
1. Q: Can you give us a quotation right now?
A: Our products are all different and special. Please give us detailed technical data. Then we will make a design and quotation for you as soon as possible.
2. Q: Do you have any one in stock?
A: Our products are all manufactured according to customers’ requirements. So our products are all different and special.
3. Q: Can you give us the technical drawing and data?
A: Our products are all custom made.Usually you need to provide us with the drawings.And if you do not have it,some important data is also necessary.We can help you design it after we signed the contract and confidentiality agreement.
4. Q: Do you provide after-sales service?
A: Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
5. Q: How about the quality of your product?
A: -- Our products manufactured strictly according to national and international standard.
-- We have ISO certification
-- We take a test on every product before delivery.
