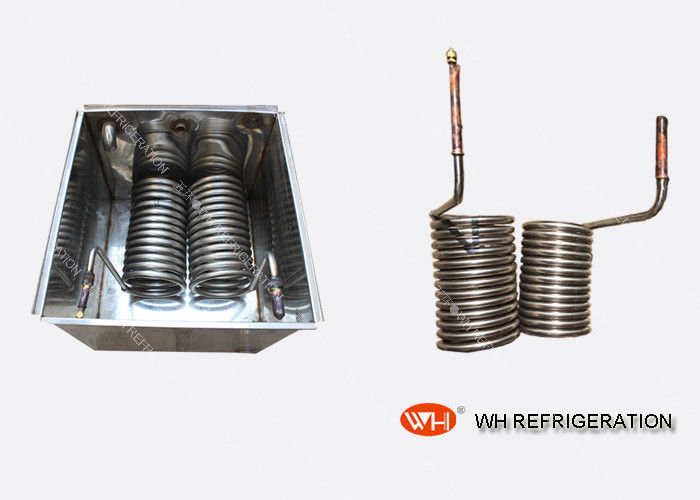

Stainless Steel Immersion Coil Type Heat Exchanger For Heating And Cooling

Quantity:
  • Zhejiang, China
  • WH
  • ISO9001:2008
  • WHB-DG
  • 1 PC
  • Negotiation
  • Carton
  • 8 working days after receving the deposit
  • Western Union, L/C, T/T
  • 10000/ Month
Product Name: Coil Heat Exchanger Warranty: 1 Year
Condition: New Type: Immersion Coil
Tube Size: 19mm(3/4") Materials: Stainless Steel

WH Refrigeration Accessories Factory:

Wenzhou Wuhuan Refrigeration Accessories Factory designs and manufactures a wide
range of heat exchangers for refrigeration, industrial and special applications .
Our evaporators and condensers can be manufactured with different materials and can
work with all types of fluids and with duty up to 6000 kW.
We are prepared for the solution of different heat exchange problems, thanks to the widest
experience of technical departments able to suggest technical solutions best suited to each
customer's need .



Wuhuan Brand Titanium Pipe Heat Exchanger is produced carefully with superior Titanium pipe.



Hot Sale Tubular Heat Exchanger Tube Heat Exchanger How Does An Evaporator Coil Work



Catalogue:



Model Qty. Diameter(mm) Freon Inlet / Outlet External Dimension(mm)
e d a2 a1 A B C
WHB-1.0DG 6.5 Turns 19.05 12.7 12.7 375 165 150
16.0 12.7 12.7 375 165 150
WHB-1.5DG 8.5 Turns 19.05 12.7 12.7 375 240 150
16.0 12.7 12.7 375 240 150
WHB-2.0DG 10.5 Turns 19.05 12.7 12.7 375 305 150
16.0 12.7 12.7 375 305 150
WHB-3.0DG 13.5 Turns 19.05 12.7 19.05 375 475 150
16.0 12.7 16.0 375 475 150
WHB-5.0DG 18.5 Turns 19.05 12.7 19.05 375 645 150
16.0 12.7 16.0 375 645

150






Notice:

  • The data list is our suggested data, We can produce any capacity heat exchangers according to customers' requirement and design.
  • To guaranteen improvement of technology , technical parameters shall be improved without further notice.





Features:

  • Usually used for heating and cooling.
  • Pure titanium tube has super strong corrosion proof ability and high intensity.
  • The seamless titanium tube was tested by 2.0MPa pressure to make sure the tube is strong and not leakage .
  • It has the character of strong corrosion resistance ,good heat resistance , high conductivity, non-toxic,no-scale ,no-blocking , no contamination of medium,and not easy to formed oxides on the surface.



Application:

  • Coil heat exchangers are widely used for mariculture ,seawater heat transfer,saline heat transfer, chemical industry,food Industry,Metallurgy,refrigeration,light industry,plating industry,aluminum oxidation tank,salt manufacturing ,paper making,ultrasonic,electrommunication and central heating etc.







Packaging & Delivery :

* Plywood case
* High compressive strength
* High load-bearing performance
* For the sample order: we used International Express freight: Such as: DHL, TNT, EMS, UPS and
  so on
* If your quantity is large, we will consider the Air or Sea Transport, all the detail terms we will discuss
  in the Contract
