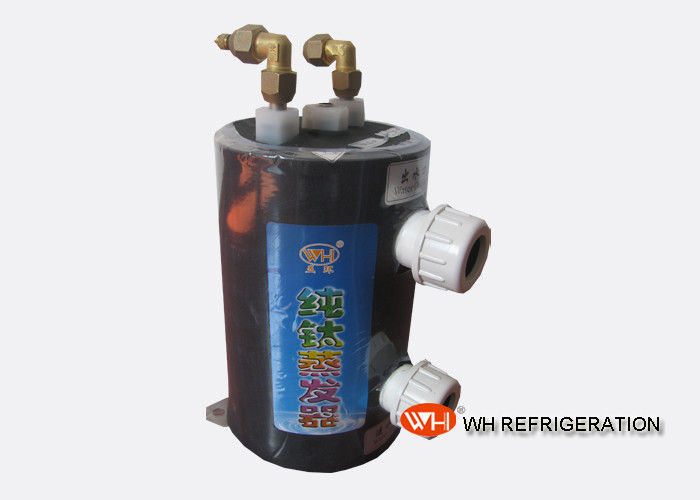

Titanium Coil In Shell Aquarium Heat Exchanger For Seawater Cooling
- Refrigerant side(In the tube): R22,R134a,R407c,R410a
- Water side (Between the tube and PVC shell):Nature water,sea water,salt solutionother corrosive solution.
- Heat transfer Tube: Thickness 0.5mm pure titanium tube.
- Shell: PVC.
- Capacity:2.0kw~14kw ( cooling )
- Pure titanium tube has super strong corrosion proof ability and high intensity.
- The seamless titanium tube was tested by 3.5MPa pressure precise Halogen Leak Detection to make sure the tube is strong and not leakage .
- The PVC shell was tested by 0.5Mpa water pressure to make sure the water system not leakage .
1.0 Refrigeration Ton = 3.5KW
|Model ||Type ||Capacity (KW) ||Water Connector ||External Dimension |
|Heating ||Cooling ||Out ||In ||A ||B ||C ||D ||E |
|WHC-1.0DYL ||Single Circuit ||2.5 ||2.0 ||1.0" ||380 ||160 ||280 ||55 ||230 |
|WHC-1.5DYL ||3.8 ||3.0 ||1.0" ||400 ||200 ||300 ||55 ||250 |
|WHC-2.0DYL ||5.0 ||4.0 ||1.0" ||450 ||200 ||350 ||55 ||300 |
|WHC-3.0DYL ||7.5 ||6.0 ||1.5" ||500 ||200 ||400 ||55 ||350 |
|WHC-4.0DYL ||10.0 ||8.0 ||1.5" ||550 ||200 ||450 ||55 ||400 |
|WHC-5.0DYL ||12.5 ||10.0 ||1.5" ||650 ||200 ||550 ||55 ||500 |
|WHC-6.0DYW ||15.0 ||12.0 ||1.5" ||970 ||200 ||850 ||55 ||800 |
|WHC-7.0DYW ||17.5 ||14.0 ||1.5" ||1020 ||200 ||900 ||55 ||850 |
- Dry-bulb temperature: 20℃,Wet-bulb temperature:15℃
- Water in temperature:18℃,Water out temperature:20℃ , Refrigerant:R407C,Heating
- Water in temperature:17℃,Water out temperature:15℃ , Refrigerant:R407C,Cooling
- The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.
- To guarantee constant inprovement of technology , the parameters shall be changed without further notice.
