| Quantity: | |
|---|---|
| Product Name: | Swimming Pool Heat Exchanger | Inner Tube: | Titanium |
|---|---|---|---|
| Specific Use: | Heating And Cooling | Type: | Vertical |
| Feature: | Corrosion Resistant | Outer Shell: | PP |

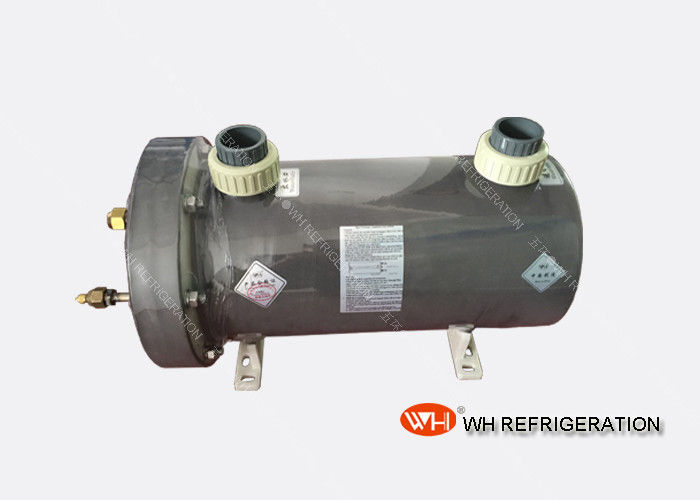

Factory Wholesale Titanium Swimming Pool Heat Exchanger 14KW With Good Price
Model: WHC-6.0DRL
Design:
Heating Capacity: 18 KW
Cooling Capacity: 14 KW
Materials: PP Shell + Pure Titanium Tube
Special Use: Heating, as condenser
| Connection (mm) | ||||
| Model | Refrigerant Side | Water Side | ||
|
| Inlet | Outlet | Inlet | Outlet |
| WHC-0.5DRL | 12.7 | 12.7 | OD32 | OD32 |
| WHC-1.0DRL | 12.7 | 12.7 | OD32 | OD32 |
| WHC-1.5DRL | 12.7 | 12.7 | OD32 | OD32 |
| WHC-2.0DRL | 12.7 | 12.7 | OD32 | OD32 |
| WHC-3.0DRL | 12.7 | 19.0 | OD50 | OD50 |
| WHC-5.0DRL | 12.7 | 19.0 | OD50 | OD50 |
| WHC-6.0DRL | 12.7 | 19.0 | OD50 | OD50 |
| WHC-8.0ERL | 12.7 | 19.0 | OD50 | OD50 |
| WHC-10.0ERL | 12.7 | 19.0 | OD63 | OD63 |
| WHC-12.0ERL | 12.7 | 19.0 | OD63 | OD63 |
| WHC-15.0SRL | 12.7 | 19.0 | OD63 | OD63 |
| WHC-20.0SRL | 12.7 | 19.0 | OD63 | OD63 |
Working Condition:
|
| Refrigerant side (in tube) | Water side (in the shell) |
| Design pressure (Mpa) | 4.5 | 0.4 |
| TEMP . Range (°C) | / | -10 to +45℃ |
| Medium | R22/R407C/R134a/R410a etc . | Sea water, salt water, ground water , swimming pool water , etc |
| Remarks | 1.Please drain off the water so as to avoid ice freezing to burst shells . 2.Please purge air thoroughly from water system , and cannot exceed the maximum pressure . 3.Keep water quality clean ,suggest to add filters, and regular cleaning . | |
Packing:
Wooden case packing
Delivery Time:
8-15days after confirming order,detail delivery date should be decided according to
production season and order quantity.
About Us:
Wenzhou Wuhuan Refrigeration Accessories Factory designs and manufactures a wide
range of heat exchangers for refrigeration, industrial and special applications .
Our evaporators and condensers can be manufactured with different materials and can
work with all types of fluids and with duty up to 6000 kW.
We are prepared for the solution of different heat exchange problems, thanks to the widest
experience of technical departments able to suggest technical solutions best suited to each
customer's need .
Our organisation is contributing huge patrons from the markets of China and other abroad countries such as Singapore, Middle-East, Africa, Malaysia, Europe, Denmark, America, Australia, UK, etc. Apart from these countries, we are also looking forward to entertain our more clients, by offering them our reliable products.
| Product Name: | Swimming Pool Heat Exchanger | Inner Tube: | Titanium |
|---|---|---|---|
| Specific Use: | Heating And Cooling | Type: | Vertical |
| Feature: | Corrosion Resistant | Outer Shell: | PP |
Factory Wholesale Titanium Swimming Pool Heat Exchanger 14KW With Good Price
Model: WHC-6.0DRL
Design:
Heating Capacity: 18 KW
Cooling Capacity: 14 KW
Materials: PP Shell + Pure Titanium Tube
Special Use: Heating, as condenser
| Connection (mm) | ||||
| Model | Refrigerant Side | Water Side | ||
|
| Inlet | Outlet | Inlet | Outlet |
| WHC-0.5DRL | 12.7 | 12.7 | OD32 | OD32 |
| WHC-1.0DRL | 12.7 | 12.7 | OD32 | OD32 |
| WHC-1.5DRL | 12.7 | 12.7 | OD32 | OD32 |
| WHC-2.0DRL | 12.7 | 12.7 | OD32 | OD32 |
| WHC-3.0DRL | 12.7 | 19.0 | OD50 | OD50 |
| WHC-5.0DRL | 12.7 | 19.0 | OD50 | OD50 |
| WHC-6.0DRL | 12.7 | 19.0 | OD50 | OD50 |
| WHC-8.0ERL | 12.7 | 19.0 | OD50 | OD50 |
| WHC-10.0ERL | 12.7 | 19.0 | OD63 | OD63 |
| WHC-12.0ERL | 12.7 | 19.0 | OD63 | OD63 |
| WHC-15.0SRL | 12.7 | 19.0 | OD63 | OD63 |
| WHC-20.0SRL | 12.7 | 19.0 | OD63 | OD63 |
Working Condition:
|
| Refrigerant side (in tube) | Water side (in the shell) |
| Design pressure (Mpa) | 4.5 | 0.4 |
| TEMP . Range (°C) | / | -10 to +45℃ |
| Medium | R22/R407C/R134a/R410a etc . | Sea water, salt water, ground water , swimming pool water , etc |
| Remarks | 1.Please drain off the water so as to avoid ice freezing to burst shells . 2.Please purge air thoroughly from water system , and cannot exceed the maximum pressure . 3.Keep water quality clean ,suggest to add filters, and regular cleaning . | |
Packing:
Wooden case packing
Delivery Time:
8-15days after confirming order,detail delivery date should be decided according to
production season and order quantity.
About Us:
Wenzhou Wuhuan Refrigeration Accessories Factory designs and manufactures a wide
range of heat exchangers for refrigeration, industrial and special applications .
Our evaporators and condensers can be manufactured with different materials and can
work with all types of fluids and with duty up to 6000 kW.
We are prepared for the solution of different heat exchange problems, thanks to the widest
experience of technical departments able to suggest technical solutions best suited to each
customer's need .
Our organisation is contributing huge patrons from the markets of China and other abroad countries such as Singapore, Middle-East, Africa, Malaysia, Europe, Denmark, America, Australia, UK, etc. Apart from these countries, we are also looking forward to entertain our more clients, by offering them our reliable products.
