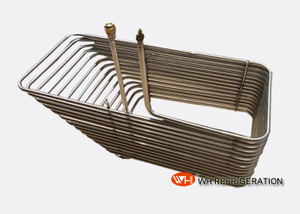

304 Stainless Heat Exchanger Coil For Pool Water Heating / Seawater Heat Transfer

Quantity:
  • China
  • WH
  • ISO9001:2008
  • WHB-DG
  • 1 pc
  • Negotiation
  • Carton
  • 8 working days after receive the payment
  • L/C, T/T, Western Union
  • 100000 pcs / Month
Product Name: Stainless Steel Coil Heat Exchanger Materials: Seamless Stainless Steel Tube
Tube Size: OD 9.52 , 12.7 , 19 , 25 Mm Medium: Fresh Water, Ground Water, Salt Water
Specific Use: Heating And Cooling Is-customized: Yes

Stainless Steel Coil Heat Exchanger Used For Pool Water Heating



Specification:​


  • Material:304 stainless steel
    Specification: Φ 9.52 * 1.0, Φ 12.7 * 1.0, Φ 16 * 1.0, Φ 22 * 1.0
    Dimension: As different as different specifications
    Feature: coiled with one total tube without welded joint, to prevent the possibility of leakage.
    Usage: heat exchanger





Wokring condition:​


  • Refrigerant to water type :R22,R134a,R407c,R410a etc.
  • Water to water type: Nature water,sea water,salt water or other corrosive solution.



Feature:​


  • Usually used for heating and cooling.
  • Stainless Steel Coil Heat Exchanger has super strong corrosion proof ability and high intensity.
  • Stainless Steel Coil Heat Exchanger is tested by 2.0MPa pressure precise Halogen Leak Detection to make sure the tube is strong and not leakage .
  • Stainless Steel Coil Heat Exchanger has the character of strong corrosion resistance, good heat resistance, high conductivity, non-toxic, no-scale, no-blocking, no contamination of medium, and not easy to formed oxides on the surface.


Application:



  • Stainless Steel Coil Heat Exchanger are widely used for mariculture, seawater heat transfer,saline heat transfer, chemical industry, food Industry, metallurgy, refrigeration, light industry, plating industry, aluminum oxidation tank, salt manufacturing, paper making, ultrasonic, electrommunication and central heating etc.



304 Stainless Heat Exchanger Coil For Pool Water Heating / Seawater Heat Transfer




Packaging & Delivery :


  • Prompt deliver at the very day.
  • Sophisticated and professional logistic agent.
  • Well-trained and disciplined packing team.
  • Packing pictures and tacking code are provided when goods ready.
  • After sale service:  Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.





RAQ:



  • Are you manufacturer ?
  • Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.



  • What is MOQ ?
  • We accept loose quantity order,mixed order,any trial orders.



  • What information needed if I want a quotation?
  • Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size. More details please contact us at wh@169call.com



  • What is your production time ?
  • It's 10 working days for standard model.
