Stainless Steel Immersion Coil Type Heat Exchanger For Seawater Heat Transfer

Quantity:
  • Zhejiang, China
  • WH
  • ISO9001:2008
  • WHB-5.0DG
  • 1 PC
  • Negotiation
  • Carton
  • 8 work days after receving the deposit
  • Western Union
  • 10000/ Month
Product Name: Stainless Steel Heat Exchangers Warranty: 12 Months
Condition: New Type: Immersion Coil
Tube Size: 19mm(3/4") Materials: Stainless Steel

304 and 316L Stainless Steel Heat Exchangers Immersion Wort Chiller

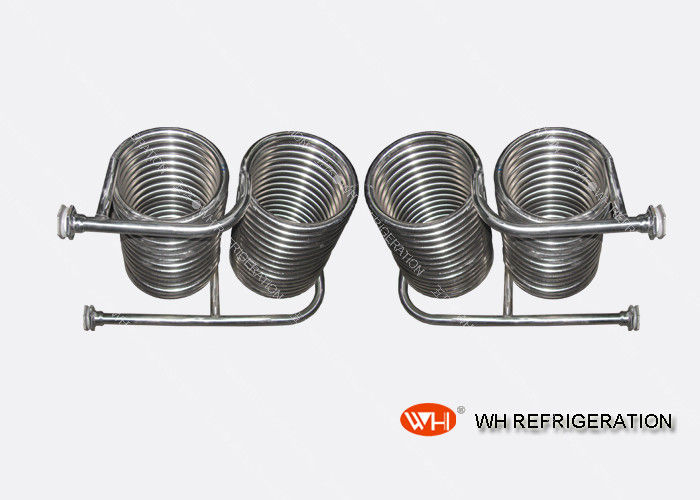

 Stainless Steel Immersion Coil Type Heat Exchanger For Seawater Heat Transfer
Application:

  • Stainless Steel Heat Exchangers are widely used for mariculture ,seawater heat transfer,saline heat transfer, chemical industry,food Industry,Metallurgy,refrigeration,light industry,plating industry,aluminum oxidation tank,salt manufacturing ,paper making,ultrasonic,electrommunication and central heating etc.

Wuhuan Brand stainless steel Pipe Heat Exchanger is produced carefully with superior stainless steel pipe.


Catalogue:



Model Qty. Diameter(mm) Freon Inlet / Outlet External Dimension(mm)
e d a2 a1 A B C
WHB-1.0DG 6.5 Turns 19.05 12.7 12.7 375 165 150
16.0 12.7 12.7 375 165 150
WHB-1.5DG 8.5 Turns 19.05 12.7 12.7 375 240 150
16.0 12.7 12.7 375 240 150
WHB-2.0DG 10.5 Turns 19.05 12.7 12.7 375 305 150
16.0 12.7 12.7 375 305 150
WHB-3.0DG 13.5 Turns 19.05 12.7 19.05 375 475 150
16.0 12.7 16.0 375 475 150
WHB-5.0DG 18.5 Turns 19.05 12.7 19.05 375 645 150
16.0 12.7 16.0 375 645 150



Advantages:

1. High corrosion resistance
2. Quick cooling and good refrigeration
3. Be used to refrigerate seawater and fresh water as the best choice for refrigeration euipment

Material:

  • Heat transfer Tube: Titanium / 316L / SUS304 / Copper


Features:

  • Usually used for heating and cooling.
  • Pure titanium tube has super strong corrosion proof ability and high intensity.
  • The seamless titanium tube was tested by 2.0MPa pressure to make sure the tube is strong and not leakage .
  • It has the character of strong corrosion resistance ,good heat resistance , high conductivity, non-toxic,no-scale ,no-blocking , no contamination of medium,and not easy to formed oxides on the surface.





Notice:

  • The data list is our suggested data, We can produce any capacity heat exchangers according to customers' requirement and design.
  • To guaranteen improvement of technology , technical parameters shall be improved without further notice.


Packaging & Delivery :

* Plywood case
* High compressive strength
* High load-bearing performance
* For the sample order: we used International Express freight: Such as: DHL, TNT, EMS, UPS and
  so on
* If your quantity is large, we will consider the Air or Sea Transport, all the detail terms we will discuss
  in the Contract

Competitive Advantages:

  • We offer high quality products at competitive price in quick delivery.
  • 100% custom pass guaranteed.
  • Good after-sale service.
  • Flexible and Untraceable payment terms.
  • Our organisation is contributing huge patrons from the markets of China and other abroad countries such as Singapore, Middle-East, Africa, Malaysia, Europe, Denmark, America, Australia, UK, etc. Apart from these countries, we are also looking forward to entertain our more clients, by offering them our reliable products.
