| Quantity: | |
|---|---|
| Product Name: | Swimming Pool Heat Exchanger | Condition: | New |
|---|---|---|---|
| Model Number: | WHC-6.0DRL | Type: | Vertical |
| Warranty: | 12 Months | Is-Customized: | Yes |
Company & Product
Wenzhou Wuhuan Refrigeration Accessories Factory designs and manufactures a wide
range of heat exchangers for refrigeration, industrial and special applications .
Our evaporators and condensers can be manufactured with different materials and can
work with all types of fluids and with duty up to 6000 kW.
We are prepared for the solution of different heat exchange problems, thanks to the widest
experience of technical departments able to suggest technical solutions best suited to each
customer's need .

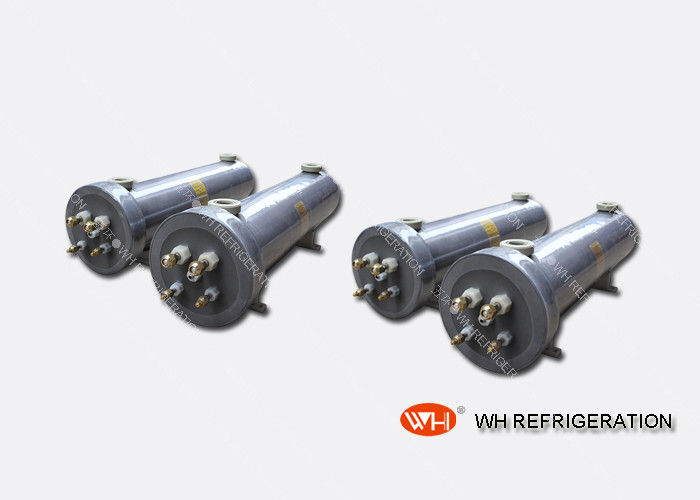

Heat Pump Water Heat Exchanger Swimming Pool Heat Exchanger Heat Pump Water Heater
Model: WHC-6.0DRL
Design:
Heating Capacity: 18.0KW
Cooling Capacity: 13.8KW
Materials: PP Shell + Pure Titanium Tube
Special Use: Heating, as condenser
| Technical Data | ||||
| Model | Type | Heat Exchange Capacity | Specification | |
| Heating | Cooling | HP | ||
| WHC-0.5DRL | Single System | 1.5KW | 1.2KW | 0.5 |
| WHC-1.0DRL | 3.0KW | 2.3KW | 1.0 | |
| WHC-1.5DRL | 4.5KW | 3.5KW | 1.5 | |
| WHC-2.0DRL | 6.0KW | 4.6KW | 2.0 | |
| WHC-3.0DRL | 9.0KW | 6.9KW | 3.0 | |
| WHC-5.0DRL | 15.0KW | 11.5KW | 5.0 | |
| WHC-6.0DRL | 18.0KW | 13.8KW | 6.0 | |
| WHC-8.0ERL | Double system | 24.0KW | 18.4KW | 8.0 |
| WHC-10.0ERL | 30.0KW | 23.0KW | 10.0 | |
| WHC-12.0ERL | 36.0KW | 27.6KW | 12.0 | |
| WHC-15.0SRL | Triple system | 45.0KW | 34.5KW | 15.0 |
| WHC-20.0SRL | 60.0KW | 46.0KW | 20.0 | |
Working Condition:
| Refrigerant side (in tube) | Water side (in the shell) | |
| Design pressure (Mpa) | 4.5 | 0.4 |
| TEMP . Range (°C) | / | -10 to +45℃ |
| Medium | R22/R407C/R134a/R410a etc . | Sea water, salt water, ground water , swimming pool water , etc |
| Remarks | 1.Please drain off the water so as to avoid ice freezing to burst shells . 2.Please purge air thoroughly from water system , and cannot exceed the maximum pressure . 3.Keep water quality clean ,suggest to add filters, and regular cleaning . | |
Packing:
Wooden case package
Delivery Time:
8-15days after receiving the order and confirming order,detail delivery date should be decided according to
production season and order quantity.
Q1. Are you factory?
A. Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China
Q2. May i get your product catalogue?
A. Sure, you are welcome to download the latest catalogue at our web or contact us directly.
Q3. Are there any discount for the heat exchangers?
A. Yes. Bigger quantity will enjoy lower discount!
Q4. What is the MOQ?
A. We accept loose quantity order,mixed order,any trial orders.
Q5. What information needed if I want a quotation?
A . Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
Q6. Can we visit your company/factory before place the order?
A. Sure.Welcome anytime.
