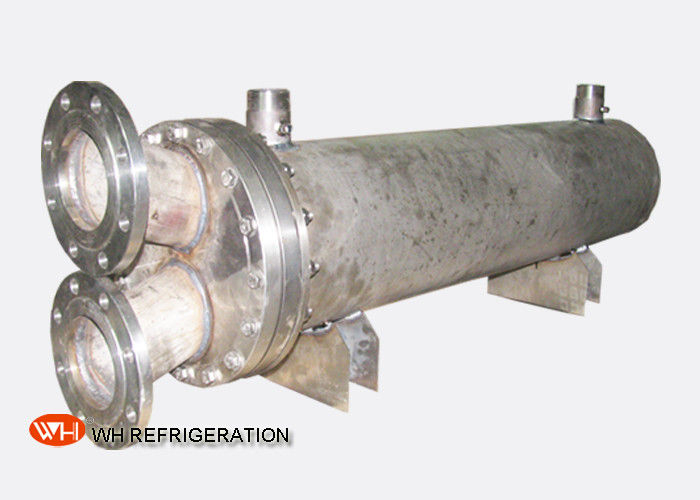

Dry Shell And Tube Titanium Seawater Heat Exchanger Water Cooled 10KW To 600KW

Quantity:
  • China
  • WH
  • ISO9001:2008
  • WHC-40DKG
  • 1 pc
  • Negotiation
  • Wooden case
  • 8 working days
  • L/C, T/T, Western Union
  • 100/pcs per month
Product Name: Seawater Heat Exchanger Tube Material: Titanium
Shell Material: PP Plastic Refrigerant Side: R22, R134A, R404A...
Capacity: 93.0 KW Water Flow: 16 M3/h

Water Cooled Dry Shell And Tube Titanium Seawater Heat Exchanger 10KW To 600KW



Seawater Heat Exchanger is suitable for water cooled unit, water source heat pump, air cooled pump and air cooled heat pump unit. The product is applying for refrigerants of R22, R134a, R407C and R410A etc. The referigerating medium is for tap water, underground water, river water and sea water or brine, water and glycol solution, sulfate solution, etc. For heat exchange tube, copper pipe, copper nickel alloy tube, titanium tube, stainless steel tube, etc. The shell raw material mainly are seamless steel tube, stainless steel pipe, PP pipe.



Work Condition:

  • Refrigerant side: R22,R134a,R407c,R410a etc.
  • Water side:fresh water, nature water, drink water, seawater, saltwater, ground water etc .



Material:

  • Heat transfer Tube: 316L / SUS304 / Copper / Titanium / Copper nickel
  • Shell: Titanium / 316L / SUS304 / Carbon steel / PP / PVC



Application:

  • Seawater Heat Exchanger is widely used for freezing industries,such as plating ,oxidation ,chemical industry,metallurgy,light industry,shipbuilding,heating, pharmaceutical,foodstuff etc, also for leather chiller, injection molding machine chiller, print chiller,PV shoe machine chiller and so on.



Notice:

  • The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.
  • To guarantee constant inprovement of technology , the parameters shall be changed without further notice.

Catalogue:

1.0 Refrigeration Ton = 3.5KW



Model Type Cooling Capacity Water Flow Dimension(MM)
KW M3/H A B C D E F G H
WHC-5.0DKG Single Circuit 11.6 2.0 660 200 90 510 150 340 60 200
WHC-8.0DKG 18.6 3.2 820 200 90 660 150 500 60 200
WHC-10DKG 23.2 4.0 1050 200 90 900 300 600 60 200
WHC-12DKG 27.9 4.8 1200 200 90 1050 350 600 60 200
WHC-15DKG 35.0 6.0 1420 200 100 1250 400 800 60 200
WHC-20DKG 46.5 8.0 1500 225 100 1350 450 800 60 200
WHC-25DKG 58.1 10.0 1370 250 100 1220 350 800 60 260
WHC-40DKG 93.0 16.0 1920 250 110 1740 420 1200 60 260
WHC-50DKG 116.3 20.0 1550 315 110 1370 300 1000 60 300
WHC-60DKG 139.5 24.0 1810 315 110 1630 360 1200 60 300
WHC-70DKG 162.8 28.0 2070 315 120 1870 550 1200 60 300
WHC-5*2EKG Double Circuits 23.2 4.0 1050 200 90 900 300 600 60 200
WHC-8*2EKG 37.2 6.4 1500 200 100 1350 450 800 60 200
WHC-10*2EKG 46.5 8.0 1500 225 100 1350 450 800 60 200
WHC-12*2EKG 55.8 9.6 1350 250 100 1200 350 800 60 200
WHC-15*2EKG 35.0 6.0 1600 250 100 1450 250 1200 60 260
WHC-20*2EKG 93.0 16.0 1920 250 110 1740 420 1200 60 260
Design Working Condition:
Chilled water in TEMP.(Ti=12℃), water out TEMP.(Tu=7℃), evaporation TEMP.(To=2℃)



Packaging & Delivery :

  • Prompt deliver at the very day.
  • Sophisticated and professional logistic agent.
  • Well-trained and disciplined packing team.
  • Packing pictures and tacking code are provided when goods ready.
  • After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages:

  • We offer high quality products at competitive price in quick delivery.
  • 100% custom pass guaranteed.
  • Good after-sale service.
  • Flexible and Untraceable payment terms.
  • Our organisation is contributing huge patrons from the markets of China and other abroad countries such as Singapore, Middle-East, Africa, Malaysia, Europe, Denmark, America, Australia, UK, etc. Apart from these countries, we are also looking forward to entertain our more clients, by offering them our reliable products.
